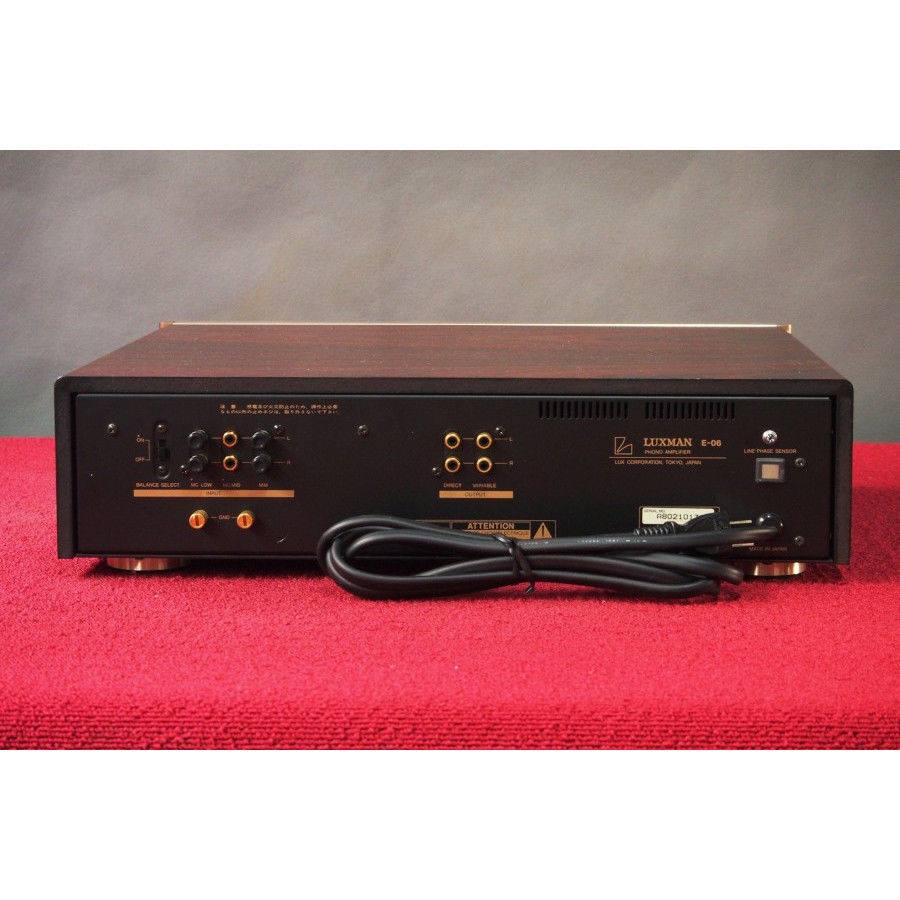

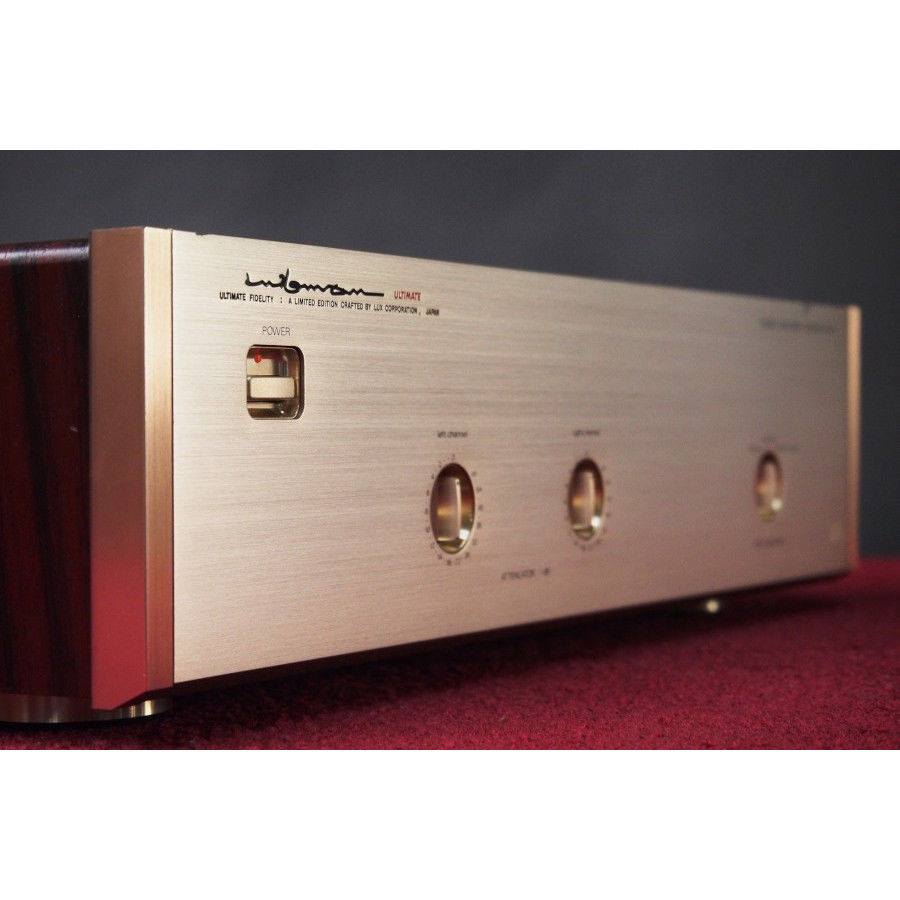

Luxman E-06 Phono Vintage

Trony
Topic Author
Offline
Administrator

More

25 Nov 2016 06:28 - 09 Oct 2019 00:21 #4548 by Trony

Luxman E-06 Phono Vintage was created by Trony

Specifications

Type
step-up transformer and CR phono equalizer

Frequency response
20Hz...20Khz within 0,2dB

Inputs
70µV / 35 Ohm (for 2...10 Ohm load, 1Khz, MC low)
200µV / 300 Ohm (for 10...100 Ohm load, 1Khz, MC mid)
2,5mV / 47kOhm (1Khz, MM)

Gain
73dB (MC low)
64dB (MC mid)
42dB (MM, through)

Output
10kOhm 32-steps fixed-resistor array (one per channel)

Output level
300mV / 20 Ohm (1Khz, fixed & variable)
10V (maximum, 1Khz)
THD : < 0,005% (MM, 1Khz)
< 0,007% (MC, 1Khz)
S/N ratio : 76dB (MC low, IHF-A)
78dB (MC mid, IHF-A)
80dB (MM, IHF-A)

Channel separation
90dB (10Khz)

PC
40W

Dimensions
46 x 12 x 40,8cm

Weight
10kg.
