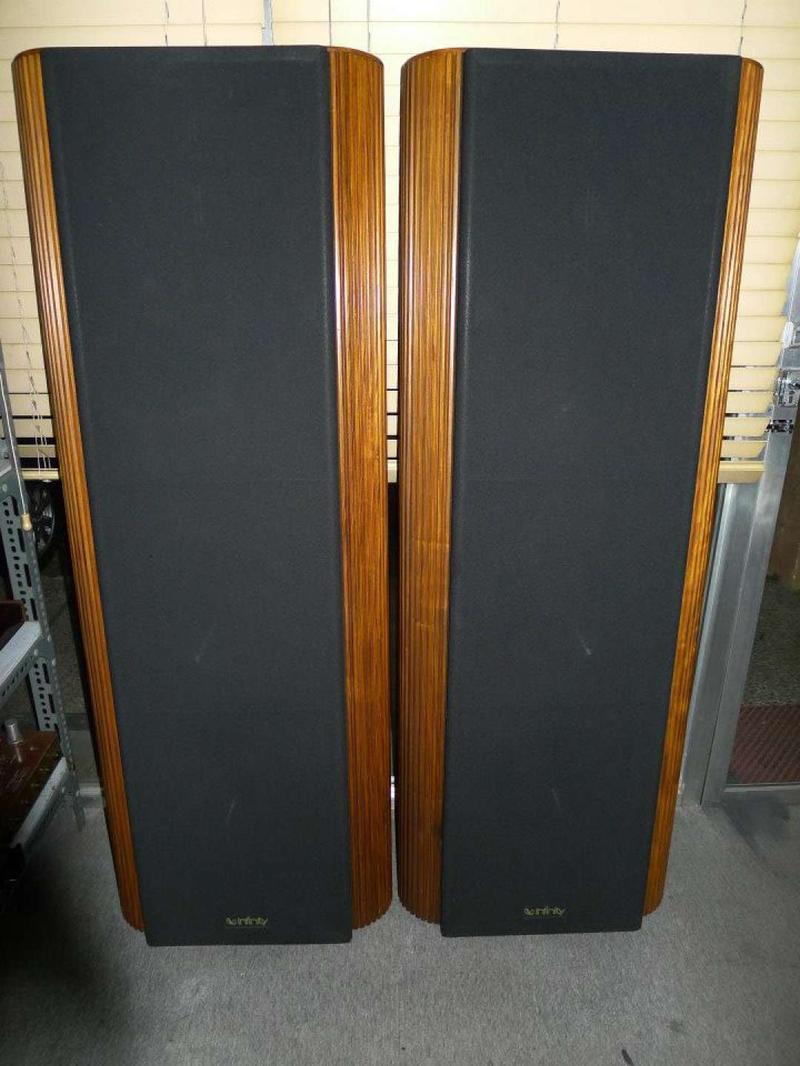

Infinity RS 9 Kappa Series 4-Way Speaker System
25 Apr 2016 05:16 - 22 Oct 2019 04:03 #4326
by Trony
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
Crossover Electrical Circuit Diagram
.jpg "Infinity RS 9 Kappa Series 4-Way Speaker System - Forum - FusoElektronique")
Acoustic and Electrical Specifications
Nominal Impedance: 4 to 6 ohm
Power Rating: 60-340 watts RMS
Efficiency: 102 dB SPL @1 watt, 1 meter Crossover Frequencies: 80Hz, 800Hz, 4500Hz Frequency Response: 29Hz-45kHz +/-3dB
Production History
Introduced in 1987
Discontinued 1989
Original Retail Price: $1,499.00/each
Physical Specifications

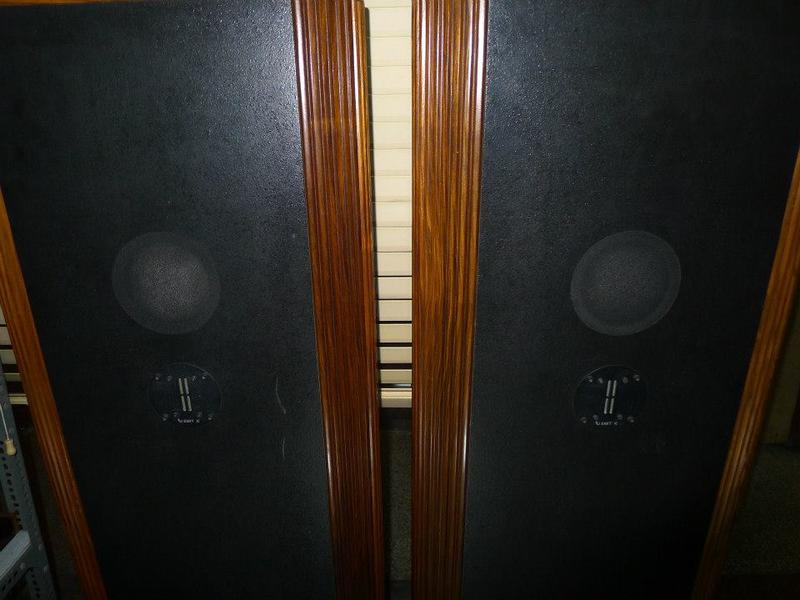

1x - SEMIT k Supertweeter 1x - EMIT k Tweeter
1x - 3" Edgewound Voice Coil Polydome k Midrange Driver 1x - 5" Polypropylene/graphite Diaphram Polygraph k
2x - 12" Cast Frame , L/C Tuned Woofers
Dimensions:
59.5"H x 21.5"W" x 8"D
151.1cm(H) x 54.6cm(W) x 20.3cm(D)
Cabinet: Not Sold
Base: #659-3261
Grille: #NLA
Crossover: #015-3254-D
Binding Post: #528-3238
Official Website
Infinity US
Infinity RS 9 Kappa Series 4-Way Speaker System was created by Trony
Crossover Electrical Circuit Diagram
Acoustic and Electrical Specifications
Nominal Impedance: 4 to 6 ohm
Power Rating: 60-340 watts RMS
Efficiency: 102 dB SPL @1 watt, 1 meter Crossover Frequencies: 80Hz, 800Hz, 4500Hz Frequency Response: 29Hz-45kHz +/-3dB
Production History
Introduced in 1987
Discontinued 1989
Original Retail Price: $1,499.00/each
Physical Specifications
1x - SEMIT k Supertweeter 1x - EMIT k Tweeter
1x - 3" Edgewound Voice Coil Polydome k Midrange Driver 1x - 5" Polypropylene/graphite Diaphram Polygraph k
2x - 12" Cast Frame , L/C Tuned Woofers
Dimensions:
59.5"H x 21.5"W" x 8"D
151.1cm(H) x 54.6cm(W) x 20.3cm(D)
Cabinet: Not Sold
Base: #659-3261
Grille: #NLA
Crossover: #015-3254-D
Binding Post: #528-3238
Official Website
Infinity US
