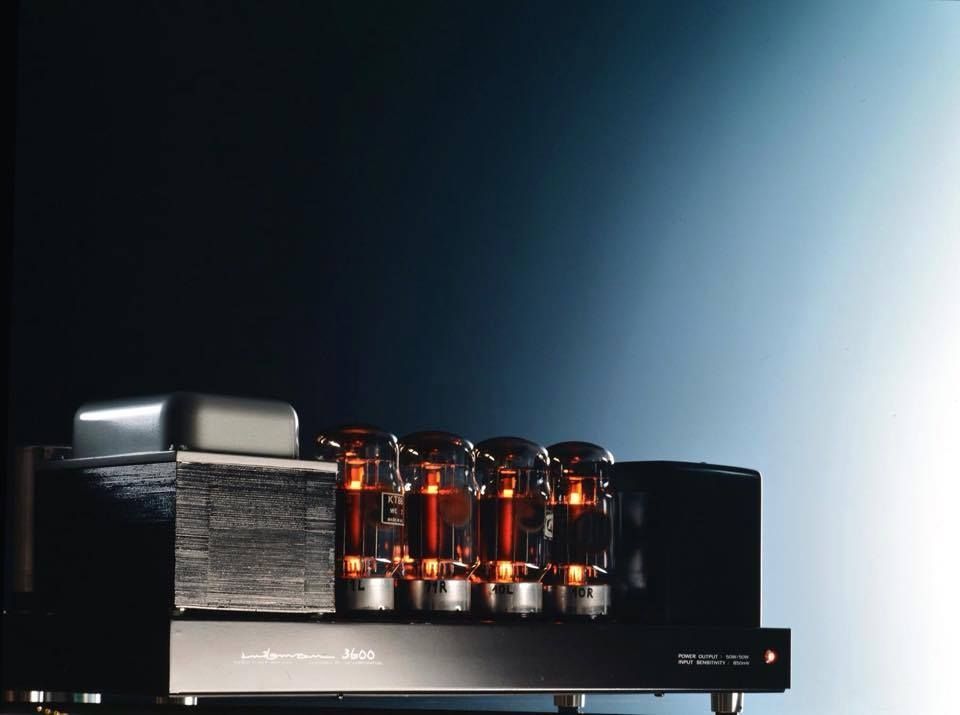

Luxman MQ-3600 [Images, Specifications and Electrical Schematic]
01 Apr 2017 06:31 - 24 Oct 2020 14:35 #4643
by Trony
![Luxman MQ-3600 [Images, Specifications and Electrical Schematic] - Forum - FusoElektronique](https://cdn.fusoelektronique.org/media/kunena/attachments/62/LuxmanMQ-3600.jpg "Luxman MQ-3600 [Images, Specifications and Electrical Schematic] - Forum - FusoElektronique")
Specifications
Drive Tubes: 6AQ8 - 6240G
Power Tubes: 8045G
Output power: 2 x50 W
Total Harmonic Distortion: no more than 0,5% (50 W, 1 kHz)
Frequency Response: 10 Hz to 35 kHz (-1 dB)
Input Sensitivity: 850 mV
Residual Noise: no more than 0,5 mV
Damping Factor: 14 (8 ohms, 1 kHz)
Power Consumption: 220 V - 300 watts
Dimensions (W x H x D): 465 x 168 x 206 mm
Weight: 17 kg (38 lbs)
Specifications
Drive Tubes: 6AQ8 - 6240G
Power Tubes: 8045G
Output power: 2 x50 W
Total Harmonic Distortion: no more than 0,5% (50 W, 1 kHz)
Frequency Response: 10 Hz to 35 kHz (-1 dB)
Input Sensitivity: 850 mV
Residual Noise: no more than 0,5 mV
Damping Factor: 14 (8 ohms, 1 kHz)
Power Consumption: 220 V - 300 watts
Dimensions (W x H x D): 465 x 168 x 206 mm
Weight: 17 kg (38 lbs)
